7680hz High Resolution LED Screens 700nits Indoor Advertising LED Display Screen
Description

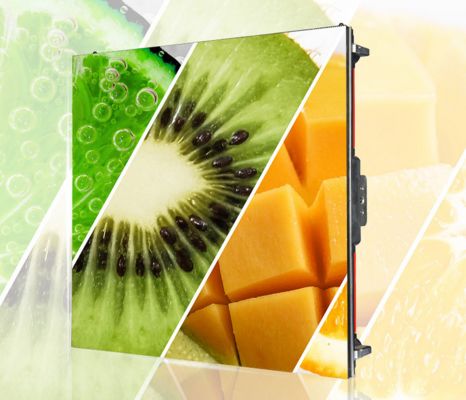

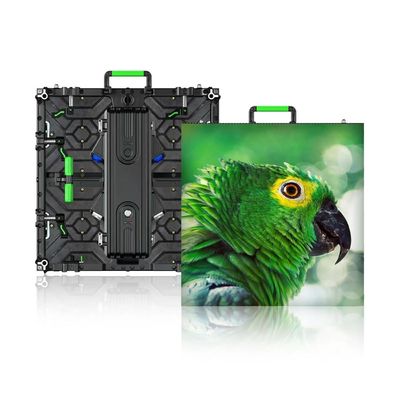

This indoor P3.91 250*250mm rental LED display module delivers exceptional image clarity and vibrant color reproduction, ideal for high-end events, exhibitions, and corporate stages. Its lightweight, quick-install design ensures effortless setup and seamless integration, providing a reliable, stunning visual experience for any professional setting.
Feature
High Resolution: P3.91 pixel pitch for sharp, detailed visuals
Compact & Lightweight: 250x250mm module size, easy to handle and install.
Seamless Tiling: Uniform color and brightness across the entire display.
Quick Setup: Front and rear service access for efficient maintenance.
Durable Build: Robust construction for long-lasting performance in rental use.
Specification
| Pixel pitch | 1.953mm | 2.604mm | 2.976mm | 3.91mm |
| Led lamp | SMD1212 | SMD1515 | SMD1515 | SMD2121 |
| Scan | 1/52 | 1/43 | 1/40 | 1/32 |
| Pixels per cabinet (500*500mm) |
256×256 | 192×192 | 168×168 | 128×128 |
| Pixels per cabinet (500*1000mm) |
256×512 | 192×384 | 168×336 | 128×256 |
| LED lifetime | 100,000h | |||
| Brightness | 500-700nits | |||
| Module size | 250*250mm | |||
| Module resolution | 128*128dots | 96*96dots | 84*84dots | 64*64dots |
| Refresh rate | 3840-7680Hz | |||
| Hor. viewing angle | 140° +/-5° | |||
| Vert. viewing angle | 140° +/-5° | |||
| Grey Level | 14 bits | |||
| Avg Power consumption | 200 W/m² | 200 W/m² | 225 W/m² | 225 W/m² |
| Max Power consumption | 400 W/m² | 400 W/m² | 450 W/m² | 450 W/m² |
| Operation power voltage | 100-240V/ 50-60Hz |
|||
| Operational temperature | -10°C to +40°C/14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP30 | |||
| Dimensions | 500 x 500 x 80 mm /500 x 1000 x 80 mm |
|||
| Weight | 7.25kg (500 x 500mm cabinet)/ 12.5kg (500 x 1000 mm cabinet) |
|||
| Serviceability | Frontal & rear service for indoor, rear service for outdoor | |||
Application
| FAQ : Q1:Are you a manufacturer or trading company? A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for more than 12 years. Q2:How does your factory do regarding quality control? A2:Quality is priority. At first, our factory use the best SMT machine is YAMAHA, and all product aging test 48hours at least. Our product approved CE/ROHS/FCC/CCC/ISO9001/ISO 40001 certificate. Q3:What is your MOQ? A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity. Q4:When will you make the delivery? A4:We can make the delivery within 3-5 working days for the led modules and 10-30days for the led display with cabinet according to the size and quantities of your order. |
||||||||||
