제품 상세 정보:
|
| 강조하다: | transparent LED screen for retail,grille LED window display,3m x 2.5m LED curtain |
||
|---|---|---|---|
| Transparent Grille LED Screen | |
|---|---|
| Pixel pitch | 3.91mm-7.82mm |
| Installation way | Hoisting, Fixed |
| Packing | SMD1921 |
| IP level | IP65 |
| Scan | 8 Scan |
| Brightness adjustment | 256 Level |
| Physical density | 32768 pixel/m² |
| Viewing Angle | H 160°,V 140° |
| Brightness | ≥4500 cd/m² |
| Viewing distance | 5m-12m |
| Transparency | 85% |
| Power requirements | AC85-240V |
| Gray level | ≥14 bit |
| Avg consumption | 200W/m² |
| Refresh Rate | 3840 Hz |
| Max consumption | 600W/m² |
| PCB board | 6 layer,2mm thick |
| Cabinet size | 1000mm*500mm*75mm 1000mm*1000mm*75mm 1500mm*500mm*75mm |
| Module size | 500*125mm |
| Cabinet Weight | 4.5KG / 8KG / 12KG |
| Life span | ≥100000h |
| Maintenance way | Front / Rear maintenance |
Crafted with CNC precision machining technology, this cabinet is built with impeccable accuracy, ensuring it is thin, lightweight, and highly durable. The streamlined design enhances portability, making it easy to transport and install, while providing users with a sleek, modern aesthetic and a hassle-free experience.
Built with advanced potting and sealing technology, we offers full protection for its LED components. This coating effectively shields against moisture while allowing surface water to evaporate without harming performance. Even when exposed to sudden impact, the LEDs remain secure and functional. The cabinet maintains full operation even under harsh conditions.
LONGDALED supports both front and rear servicing. Rear access requires clearance behind the screen, while front maintenance allows easy removal of modules and power units by unscrewing from the front. This dual maintenance system speeds up part replacement and simplifies upkeep, helping reduce downtime during events.

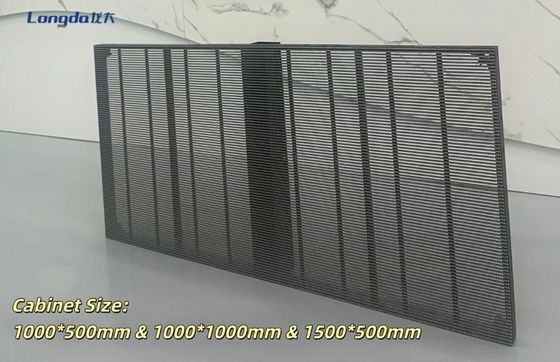

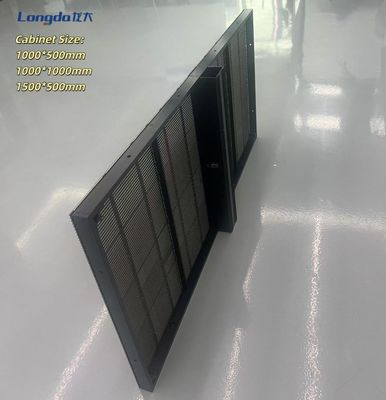

A wide variety of cabinet sizes are available, including 1000mm*500mm, 1000mm*1000mm, and 1500mm*500mm. Different cabinets can be freely combined according to the scenario to form the desired screen size.
Example configuration: Length=3 meters, Height=2.5 meters, the total area is 7.5 sqm. It is composed of 3pcs 1000mm*500mm cabinets and 6pcs 1000mm*1000mm cabinets.
