제품 상세 정보:
|
| 픽셀 피치: | P1.25 P1.538 P1.86 P2 P2.5 P3.076 P4 | 모듈 크기: | 320*160mm |
|---|---|---|---|
| 특징: | 곡선 각도 >15° | 보기 각도: | 160 ° |
| 입력 전압: | AC110-240V | 온도: | -30C-70C |
| 수명 (시간): | 100000 | 보증: | 3 년 |
| 강조하다: | flexible column LED display for retail,ROHS compliant LED advertising screen,indoor full color LED display |
||
Flexible Column Led Display With ROHS For Retail Shop advertising from china

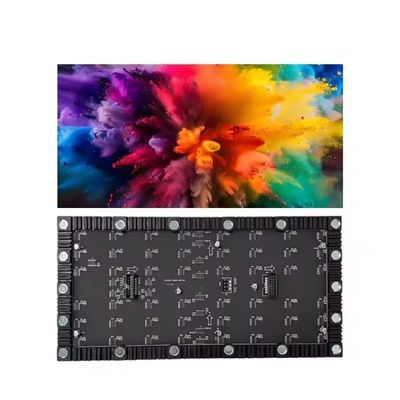

China Flexible LED modules are capable to make any high-definition curved screen surface no matter how small or big the concave or convex is.

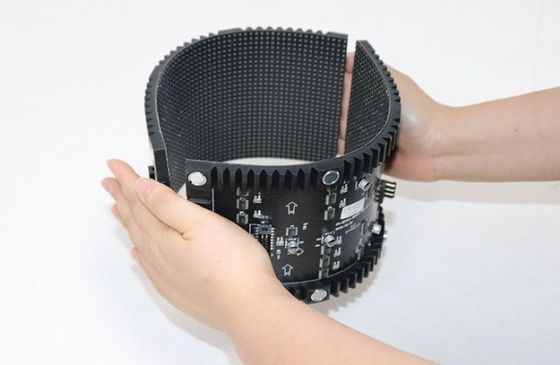

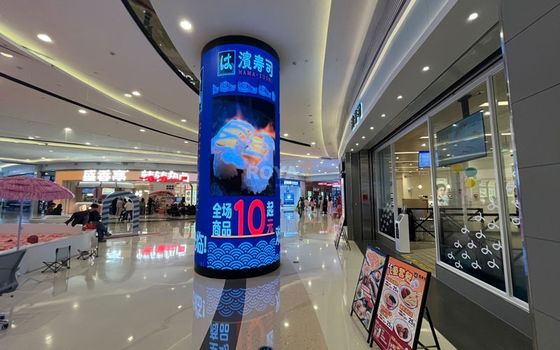

Flexible LED displays are capable to make any curved surface no matter how small or big the concave or convex is. The flexible LED screen comes with a modular design available to do any bigger size led screen, and magnetic design available for front service , retail shop , creative column, and so on.
Key Parameters
From fine pitch P1.25mm to a P4mm, it provides many possibilities in your design.
| Flexible LED Indoor Screen | |||||||
| Pixel Pitch(mm) | P1.25 | P1.5 | P1.8 | P2 | P2.5 | P3.076 | P4 |
| Led lamp | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD2121 |
| Scan | 1/64 | 1/52 | 1/43 | 1/40 | 1/32 | 1/26 | 1/20 |
| Resolution | 256x128 | 208x104 | 172x86 | 160x80 | 128x64 | 104x52 | 80x40 |
| Module size | 320mmx160mm | ||||||
| Cabinet Size | Support Customization | ||||||
| Maintenance Mode | Magnetic Front Service Support | ||||||
| Brightness | 500-800nits | ||||||
| Refresh Rate | 3840HZ | ||||||
| Protection Level | IP30 | ||||||
Construction of Led Screen
Intelligent Design Features
How much would it cost ?
If you are interested, just contact me to learn more!
